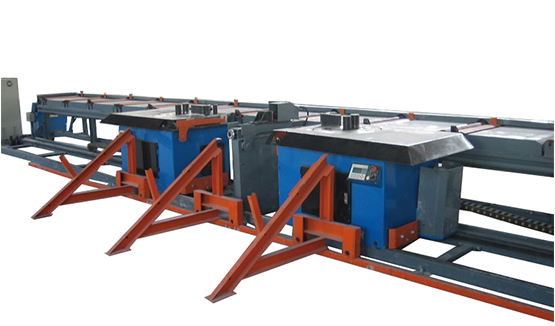

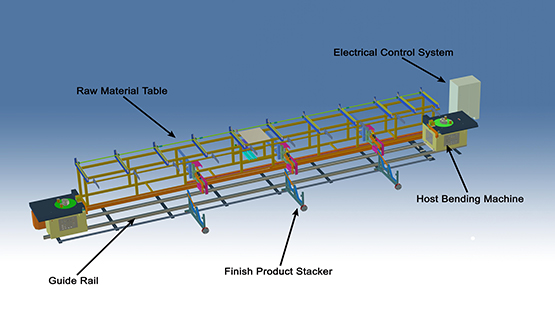

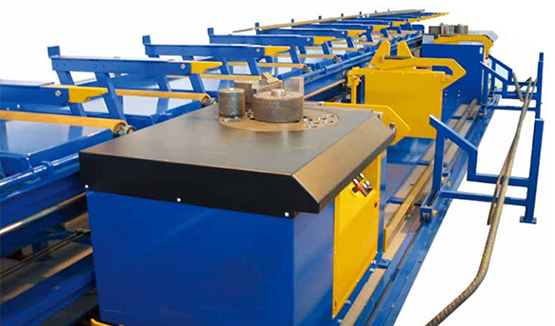

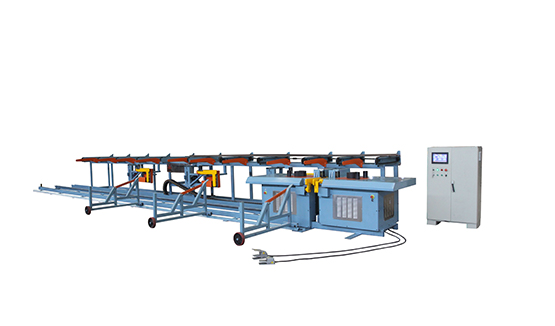

Horizontal Rebar Bending Line
Product Description
Model: GWX40
Working Capacity: 10-40mm
Max. bending angle(single directional): 0-180°
Max. bending angle (bidirectional): ±90°
Technical Advantages：
1.High automatically, reducing labor intensity greatly;
2.Dual host, bringing fast positioning and high efficiency;
3.Matieral elevating machanism, a smart feeding method;
4.Counting by encoder with high bending accuracy；
5.Accurate gear positioning system for accurate bending length;
6.Advanced control system, and humanized operation way.
TECHNICAL DATA
Model | GWX40 |
Host Conveying speed(m/min) | 6 – 30 |
Bending speed(r/min) | 20°~72°/s |
Pneumatic system pressure (Mpa) | ≥0.6 |
Max. bending angle (bidirectional) | ±90° |
Max. bending angle (single directional) | 0-180° |
Min. Distance between two heads | 1200 mm |
Max. Contra Bending Size | 500 mm |
Supply load (kg) | 2000 |
Material Feed Speed | ~ 7m/min |
Accuracy of angle | ±1° |
Accuracy of length | ±3mm |
Power (kw) | 19 |
Voltage specification | 3 phase, 380V, 50Hz or customize |

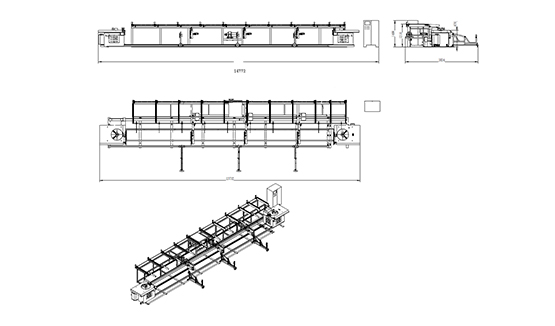

Overall dimensions (mm) | 13800×3850×1310 |
Bending Capacity:
Bending Capacity | Æ12 | Æ16 | Æ18 | Æ20 | Æ22 | Æ25 | Æ28 | Æ32 | Æ36 | Æ40 |
| 5 | 4 | 3 | 3 | 2 | 2 | 1 | 1 | 1 | 1 |
Bending Central Mandrel | 50 mm | 80 mm | 120 mm | 150 mm | ||||||
