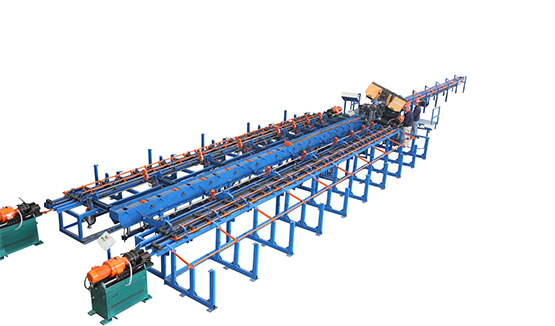

Automatic Rebar Threading Line

Home - Products - Rebar Processing Machine - Straight Steel Rod Bar Processing Machine

Model: GSX-500

Sawing Working Capacity: Φ12-Φ50mm

Sawing Width: 300-500 mm

Finish Rebar Length: 1500～12000 mm

Length Tolerance: ±5 mm

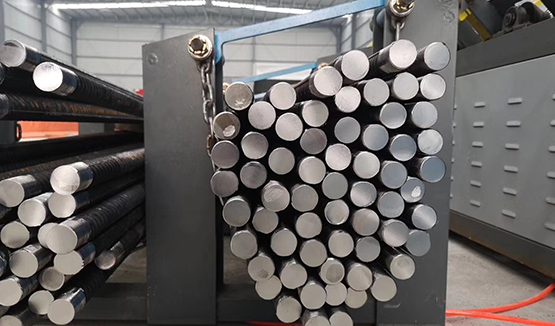

① Blanking by saw cutting, end face is flat and level.

② Automatic sequence system, it can improve produce efficiency.

③ Raw material double layer blanking, this improves production efficiency more than 40%.

④ All direction clipping, that ensures life of saw.

⑤ It can separate single rebar from bunch.

⑥It matches with automatic alignment head structure. Location and cutting is very accurately.

Sawing Working Capacity	Φ12-Φ50mm
Sawing Width	300-500 mm
Rebar Feeding Speed	48 m/min
Max. Raw Material Length	12000 mm
Aligning Length	9m, 12m
Finish Rebar Length	1500～12000 mm
Length Tolerance	±5 mm

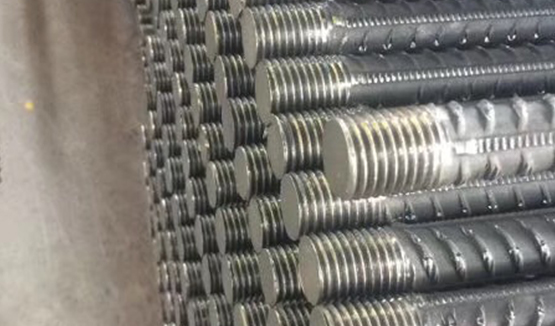

Thread Angle	60°
Working Pressure	0.4～0.7 MPa
Hydraulic System Pressure of Sawing System	3MPa
Electric Voltage	380V±5% 50Hz
Temperature	-5～40℃
Altitude	≤1000 m
Humidity	≤85%
Overall Dimensions(LWH)	32000×8500×1700 mm
Rated Power	48KW
Productivity	100pcs/h (Processing 32mm Rebar)
