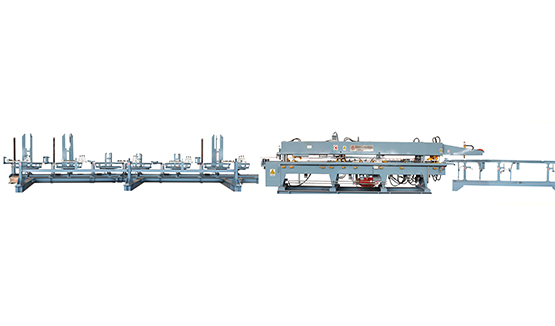

Automatic Lattice Girder Welding Line

Product Description

Model: GJH270

Assist Bar Diameter: Φ4-Φ8 mm

Upper Bar Diameter: Φ8-Φ12 mm

Lower Bar Diameter: Φ8-Φ12 mm

Welding Speed: 15-30 m/min

Height of Girder: 70~270mm

Leave Message Contact Us

Technical Parameters

Model	GJH270
Assist Bar Diameter	Φ4-Φ8 mm
Upper Bar Diameter	Φ8-Φ12 mm
Lower Bar Diameter	Φ8-Φ12 mm
Oil Pressure	5-12Mpa
Rated Power	3*250kw
Power Supply	3 phase, AC380V,+10%～-10%, 50
Pneumatic System Pressure	0.6-0.8Mpa
Coolant Pressure	0.3 Mpa
Coolant Flow	120L/min
Coolant Temperature	0≤30℃
Max. Welding Speed	15-30 m/min
Height of Girder	70~270mm
Section Spacing	190-210mm adjustable
Dimensions of All Line	32000mm×3000×1400mm
Working Capability	＞ 800 m/h

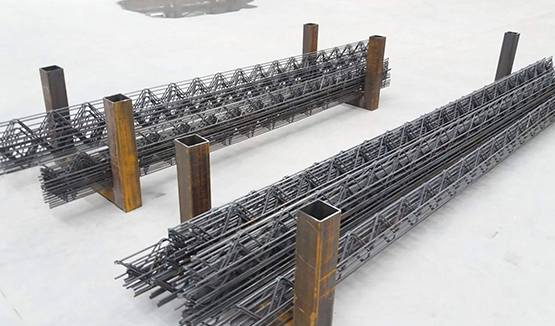

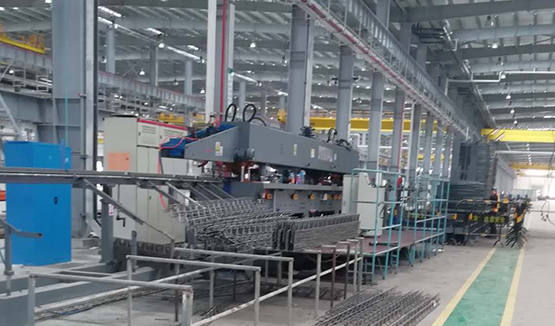

application example
