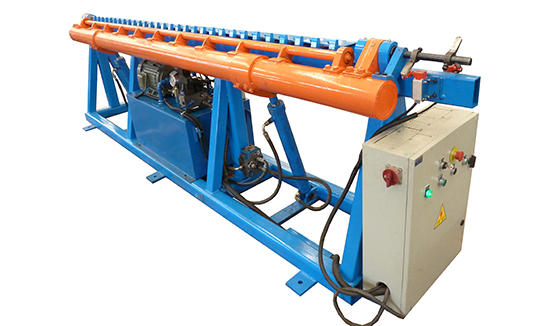

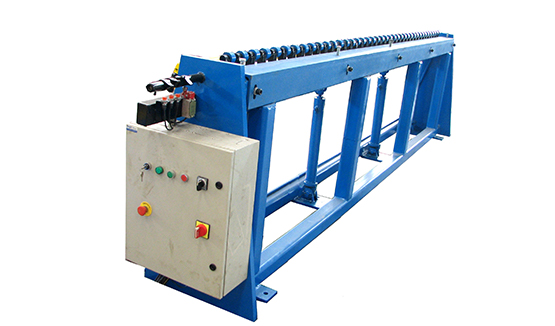

Steel Wire Mesh Bender

Home - Products - Rebar Processing Machine - Steel Product Welding Line

Model： GWW13 1500/2000/2500/3000/3500

Max. Bending Mesh Width: ≤1500/2000/2500/3000/3500mm

Mesh Line or Cross Wire Diameter: 6-13mm

Bending Angle: ≤180°

Bending Speed: 10°/sec

Max. Pressure of Hydraulic System: 16Mpa

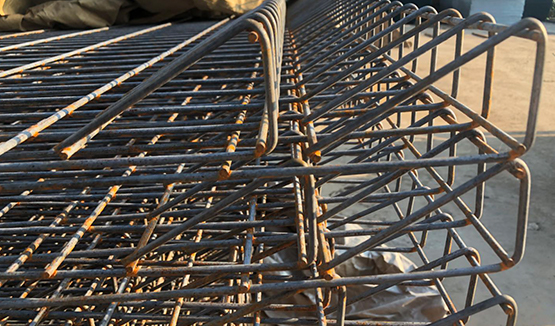

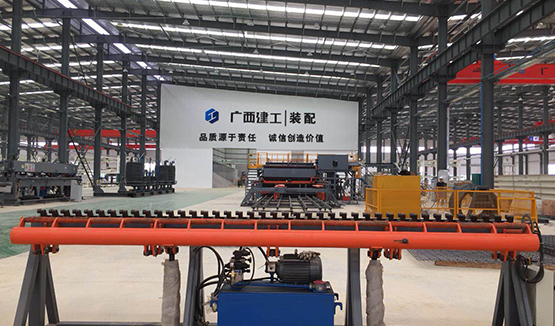

Automatic Steel Mesh Bender used for bending steel wire mesh, widely used in PC plant, rebar fabricate plant and so on.

1 Easy Operation

2 High Efficient Productivity

3 Stronger Bending Strength

4 Reliable Working Performance

Model	GWW13/2500
Max. Bending Mesh Width	≤2500mm
Min. Bending Mesh Length	≥160mm
Mesh Line or Cross Wire Diameter	Φ6-Φ13mm
Bending Angle	0 ~ 180°
Angle Tolerance	±2°
Max. Pressure of Hydraulic System	16Mpa
System flow	20 L/min
Rated Power	7.5 KW
Dimensions (LWH)	2900×1100×1200mm
Weight	0.9 tons
