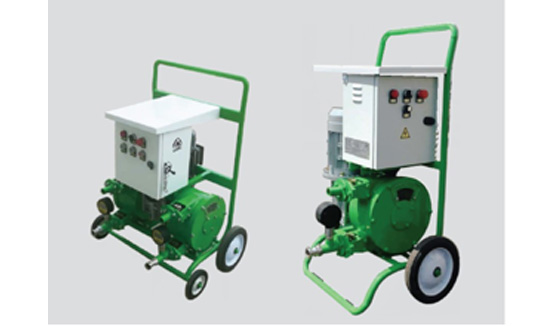

Product Description
Rated displacement 6L/min 0~6L/min
Product Features
This machine is suitable for grouting construction of c
1.The pumping process has little disturbance to the microstructure of the material;
2.Small starting resistance, good low speed characteristics, suitable for pressure-holding grouting;
3.Reliable and durable, less wearing parts, low cost and convenient replacement;
4.The pump head has high mechanical efficiency, is light and portable, and is easy to clean and maintain;
5.Optional pressure gauge and pressure control module.
ement slurry, mortar or sleeve grouting materials.
Main Technical Specification
Model | UBJ0.5A | UBJ0.5B |
Rated displacement | 6L/min | 0~6L/min |
Working pressure | 1.5MPa | 1.5MPa |
Horizontal distance | 30m | 30m |
Vertical distance | 15m | 15m |
Maximum particle size | 3mm | 3mm |
Motor Power | 1.5kW | 1.5kW |
Machine quality | 85kg | 86kg |
Dimensions | 770mm | 770mm |
600mm | 600mm | |
940mm | 940mm |
application example
