Belt type concrete pouring machine
Product Description
Model HJZ20-120,HJZ25-120,HJZ30-120
Product Overview

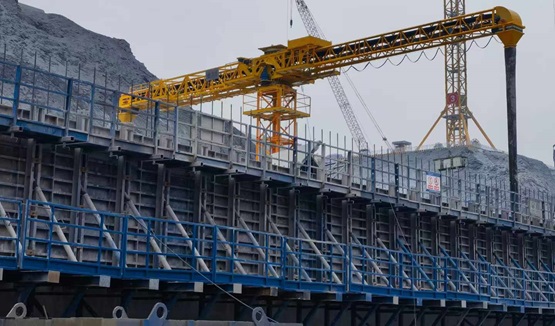

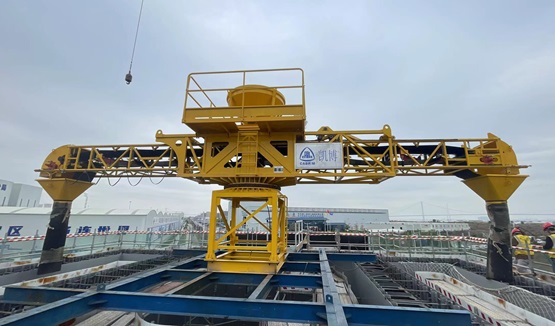

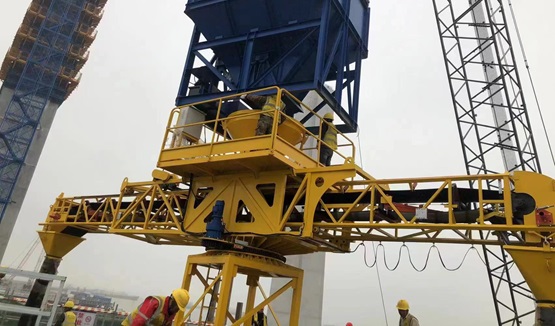

The equipment can rotate within a 360° range, and has functions such as column top feeding, left and right movement and luffing,and discharging and pouring at both ends.
It can cover concrete pouring in a circular area with the column as the center and the maximum arm length as the radius.

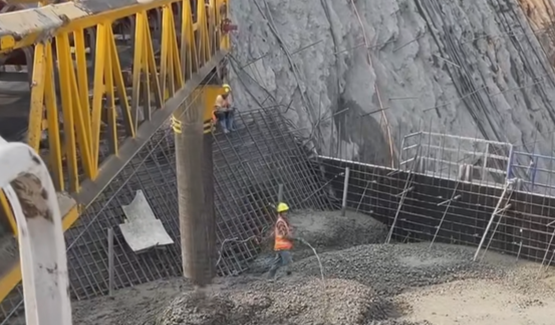

It is suitable for pouring large-volume graded concrete in water conservancy, hydropower and various large-scale foundations.
Main Technical Specification
Model | Rated conveying capacity (m³/h) | Radius (m) | Belt width (mm) | Belt speed（m/s） | Independent installation height (m) | Total power (kW) |
HJZ20-120 | 120 | 3.5～20 | 650 | 2.5 | 20 | 18 |
HJZ25-120 | 120 | 3.5～25 | 650 | 2.5 | 20 | 19.4 |
HJZ30-120 | 120 | 3.5～30 | 650 | 2.5 | 20 | 20.2 |
