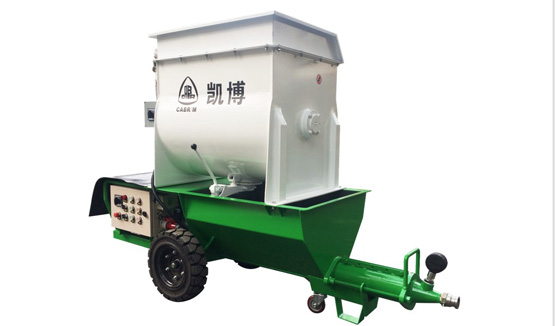

UBL screw sprinkler and irrigation
Product Description
Model MHZS25 MHZS50
Theoretical productivity 25m3 /h 50m3 /h
Product Features
It is suitable for spraying and pouring of many types of mortar materials, especially for construction of light steel villas.
1．Large displacement screw pump, multi-purpose for one machine;
2．Automatic water supply, equipped with horizontal mixer (or vertical mixer) for efficient slurry mixing;
3．With displacement adjustment and remote control functions, it is safe and reliable;
4．Modular design for easy handling, disassembly and assembly, flexible movement, and quick positioning.
Main Technical Specification
Model | UBL4A | UBL4B | |
Rated displacement | 60L/min | ||
Preset pressure | 3MPa | ||
Horizontal distance | 60m | ||
Vertical distance | 30m | ||
Maximum particle size | 7mm | ||
Total motor power | 9.87kW | ||
Machine quality | 350kg | 415kg | |
Dimensions | L | 2040mm | 2200mm |
W | 680mm | 800mm | |
H | 1270mm | 1550mm | |
