UB Mortar Pump

Conveying capacity 4m3/h、0.5~4m3/h、8m3/h、10m3/h

Equivalent horizontal conveying distance 120、180、180、180 m

Equivalent vertical conveying distance 40、 60、 60、 60 m

UB Mortar Pump is a cam driven piston pump, suitable for conveying, grouting and grouting of mortar and cement slurry and other materials.

Model		UB4B	UB4C	UB8	UB10
Conveying capacity		4m3/h	0.5~4m3/h	8m3/h	10m3/h
Working pressure		3MPa	3.5MPa	4MPa	4MPa
Equivalent horizontal conveying distance		120m	180m	180m	180m
Equivalent vertical conveying distance		40m	60m	60m	60m
particle size		8mm	8mm	8mm	8mm
Motor Power		7.5kW	11kW	11kW	15kW
Machine quality		350kg	450kg	490kg	710kg
Dimensions	L	1550mm	1550mm	1850mm	1850mm
	W	700mm	700mm	800mm	850mm
	H	900mm	900mm	800mm	800mm
Structure type		Single cylinder	Single-cylinder speed regulation	Twin cylinder	Three cylinder

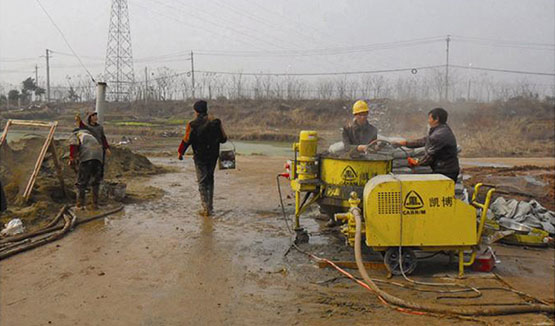

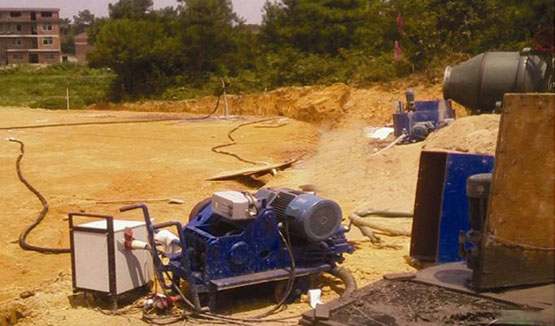

application example
