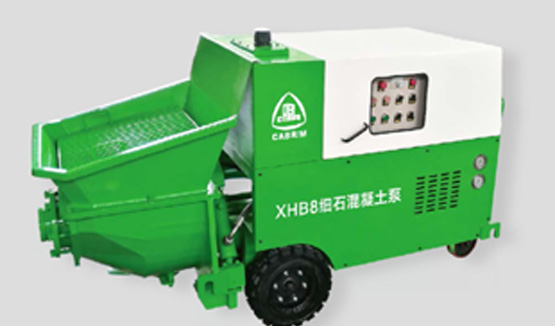

XHB fine stone concrete pump
Product Description
Maximum delivery volume 6 、8m3/h
Maximum delivery Horizontal distance 300 m
Maximum delivery Vertical distance 100 m
Product Features
This machine is suitable for high-rise building plastering, masonry, and transportation of mortar, fine stone concrete (bean stone concrete) or other similar slurry for construction columns, roofing, floor heating projects, high-speed rail, tunnels, etc.
1.The smooth design of the hopper cavity reduces the residual amount of slurry at the end of pumping;
2.Compact design, miniaturized size, can be used in places with limited space, flexible movement.
Main Technical Specification
Model | XHB6 | XHB8 | ||
Maximum delivery volume(m3/h) | 6 | 8 | ||
Maximum delivery pressure(MPa) | 7 | 7 | ||
Maximum delivery distance(m) | Horizontal | 300 | 300 | |
Vertical | 100 | 100 | ||
Allowed maximum aggregate particle size(mm) | 15 | 25 | ||
Power(kW) | 15 | 15 | ||
Weight(kg) | 800 | 900 | ||
Dimensions(mm) | L | 2020 | 2050 | |
W | 680 | 850 | ||
H | 1070 | 1200 | ||
application example
