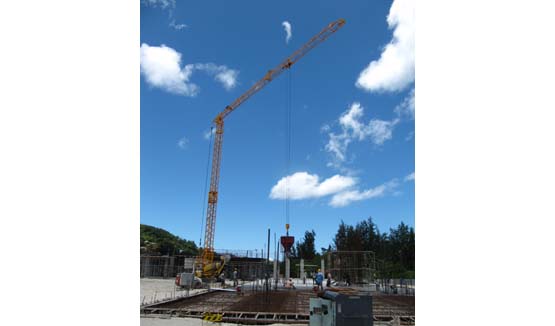

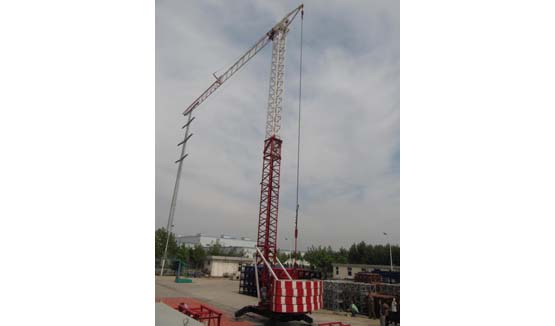

Self Erected Tower Crane
Crane can be Self Assembled and

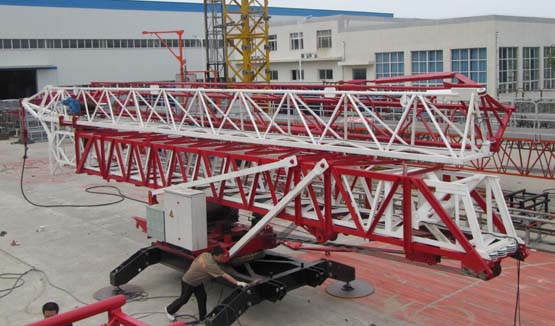

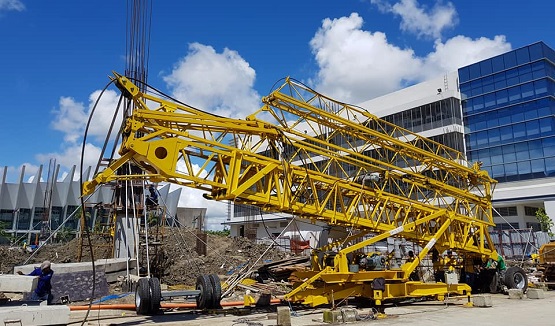

Being rapidly assembled and ready for use within one hour;
It can be entirely towed through all standard bridge because of compact structure;
Tower body self-locked, jib self-connected and pulley self-positioned on jib end, making no aloft working during the whole processes of erection and dismantling;
Load moment limiter and load lifting limiter with high accuracy and reliability;
Both fixed supports and rail tracks are optional;
Items | Unit | Parameters | |
|
| QTK25 | QTK40 |
Lifting moment | kN·m | 250 | 400 |
Rated lifting capacity | t | 1-3 | 1.1-4 |
Working radius | m | 3~25 | 3.5~34.5 |
Hoisting height | m | 23 | 23 |
Dead Weight | t | 10.5 | 14.63 |
Counter weight | t | 14.4 | 25.74 |
We have exported this product to Philippines,Vietnam,Thailand,Indonesia,India,Uzbekistan,Seychelles,U.S.,Brazil,Argentina,etc.
