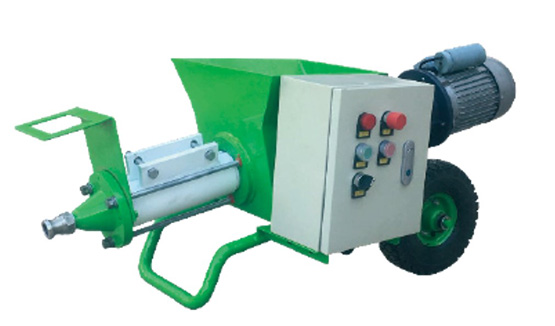

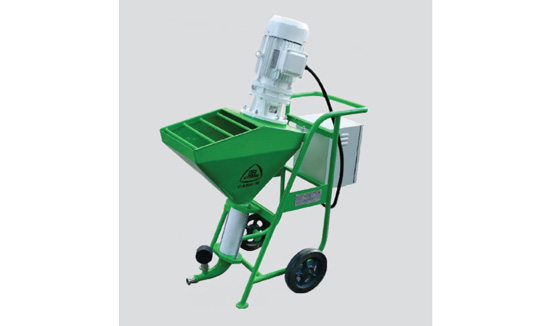

UBL screw grouting machine
Product Description
Rated displacement 5L/min 8L/min
Horizontal distance 35m 50m
Vertical distance 15m 20m
Product Features

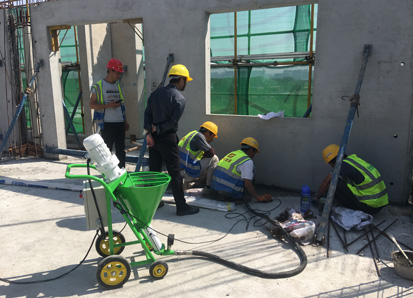

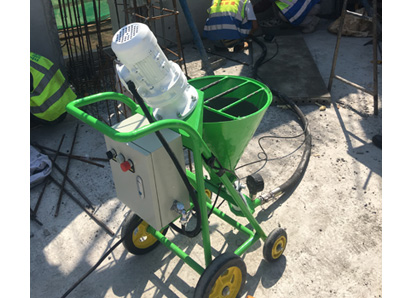

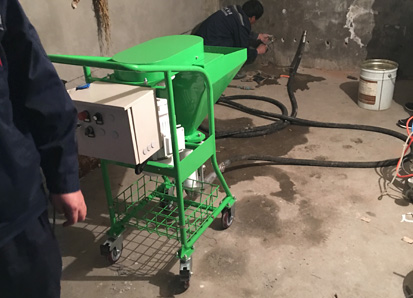

This machine is suitable for grouting of grouting materials such as reinforcement, waterproofing or repair works.
1．Compact structure, convenient operation and simple maintenance;
2．Consumable wear-resistant formula;
3．Light and small, easy to move;
4．Optional pressure gauge and pressure control module.
Main Technical Specification
|
Model |
UBL0.3 |
UBL0.5 |
|
Rated displacement |
5L/min |
8L/min |
|
Working pressure |
2MPa |
3MPa |
|
Horizontal distance |
35m |
50m |
|
Vertical distance |
15m |
20m |
|
Maximum particle size |
2.5mm |
5mm |
|
Motor Power |
0.75kW |
2.2kW |
|
Machine quality |
55kg |
120kg |
|
Dimensions |
800mm |
1070mm |
|
525mm |
550mm |
|
|
1100mm |
1030mm |
