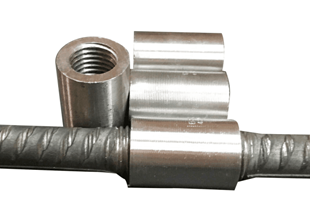

Parallel Thread Rebar Splice with Upsetting End
1) Cutting off the end of rebar; 2) Enlarging the end of rebars by upsetting; 3)…
Taper Thread Rebar Splice System
Product Description
Working Capacity 16-40mm
Function Processing Rebar Taper Thread
Rebar Grade HRB400 and HRB500
Standard JGJ107, UBC1997, BS8110, NF35-20-1, DIN1045, ISO15835
CABR rebar taper thread mechanical splicing system designed for the connection of concrete reinforcing bars from Φ16 – Φ40. We could produce coupler as your technical requirements. We also could provide complete rebar splicing solutions for you as your construction project’s demands.

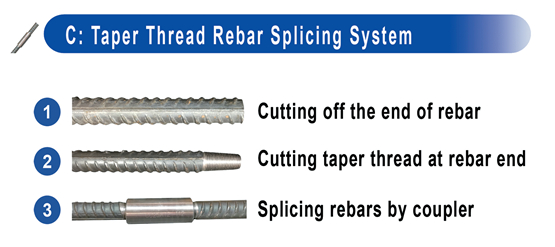

Three Steps Manufacturing Process
1. Cutting off the end of rebar;
2. Bar end cutting taper thread;
3. Splicing rebars by coupler;

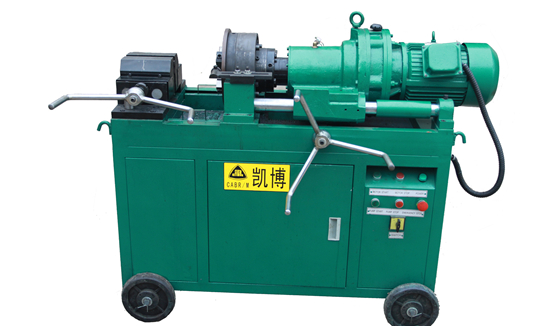

Technical Specification - Taper Thead Cutting Machine
|
Model |
GTS-40S |
|
Working Capacity (Rebar Dia.) (mm) |
Φ16 –Φ40 |
|
Working Speed (RPM) |
50/63 |
|
Max. Length of thread (mm) |
70 |
|
Screw Pitch (mm) |
P2.0, P2.5, P3.0 |
|
Rated Power (kw) |
4 |
|
Voltage |
380[V] – 50 [Hz] or customized |
|
Overall Dimensions (L*W*H) (mm) |
|
|
Overall Weight (kg) |
400 |

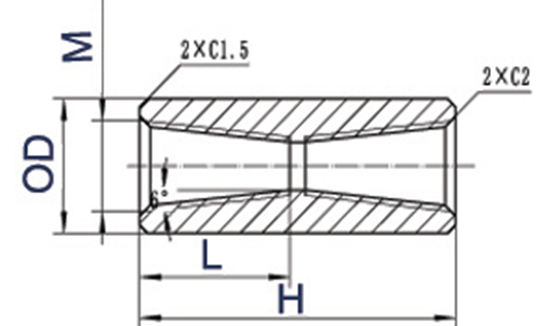

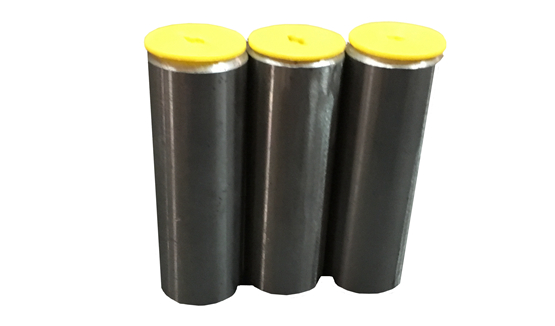

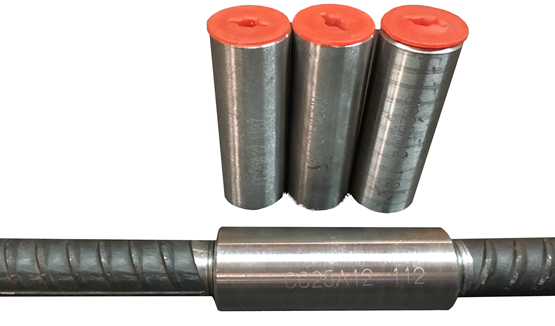

Technical Specification - Taper Thead Coupler
|
Rebar Dia. (mm) |
Outside Dia. ( D)(mm) |
Coupler Length L (mm) |
Thread Size (mm) |
Thread Angle (°) |
Taper Degree (°) |
|
T16 |
Φ25 |
61 |
M17*1.25 |
60°/75° |
6° |
|
T 18 |
Φ30 |
72 |
M19*1.25 |
60°/75° |
6° |
|
T 20 |
Φ30 |
88 |
M21*2 |
60°/75° |
6° |
|
T 22 |
Φ33 |
91 |
M23*2 |
60°/75° |
6° |
|
T 25 |
Φ35 |
96 |
M26*2 |
60°/75° |
6° |
|
T 28 |
Φ38 |
101 |
M29*2 |
60°/75° |
6° |
|
T 32 |
Φ45 |
107 |
M33*2 |
60°/75° |
6° |
|
T 36 |
Φ50 |
121 |
M37*2 |
60°/75° |
6° |
|
T 40 |
Φ56 |
131 |
M41*2 |
60°/75° |
6° |
|
Rebar Grade |
Yield strength: 500Mpa, Tensile strength: 630Mpa -In China its model: HRB500 |
||||
|
Material |
45# High quality carbon steel or according to customers’ requirements |
||||
Technical Advantages
1) High splicing strength, which could exert ultimate tensile and compression strength of rebar, it could satisfy the requirements stipulated in the Chinese standard JGJ107, American standard UBC1997, British standard BS8110, French standard NF35-20-1, German standard DIN1045, ISO15835 and other requirements in the relevant standards;
2) Fast, Economical, Reliable, and Low Maintenance.
3) Easy to operate and maintain, high production efficiency and fast installation, no need for skilled technicians.
4) Covers Full Range of Rebar Types and Grades /sizes
5) Inexpensive to purchase, maintain and repair.
6) The Splices could be produced in advance without influencing the construction period.
7) Manufactured under strict quality assurance plan ISO 9000
