Product Features

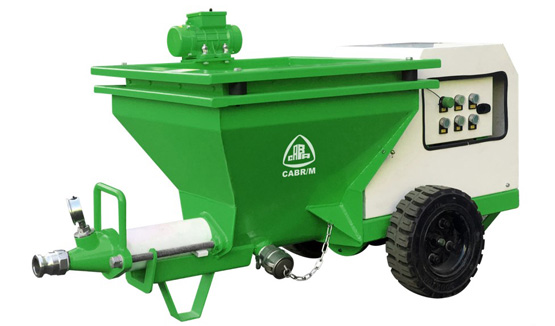

This machine is suitable for thin layer spraying of many types of highly viscous materials such as putty, real stone paint, latex paint, gypsum mortar and so on.
1．Equipped with variable frequency speed regulation, which can adjust the flow steplessly, with a compact structure and flexible movement;
2．The machine is light in weight and can be manually moved by humans. It can be configured for operation in the construction gondola.
Main Technical Specification
|
Model |
UBL0.6 |
UBL1.2 |
|
|
Limited Data |
10L/min |
20L/min |
|
|
Working pressure |
2MPa |
3MPa |
|
|
Horizontal distance |
30m |
50m |
|
|
Vertical distance |
15m |
30m |
|
|
Maximum particle size |
3mm |
3mm |
|
|
monitor rate |
1.5kW |
4kW |
|
|
Machine quality |
75kg |
185kg |
|
|
Dimensions |
L |
1100mm |
1450mm |
|
W |
450mm |
670mm |
|
|
H |
500mm |
800mm |
|
