Product Description
Model： SMGX32
Anchor rod diameter： 22,25,32 mm
Anchor rod length： 2000-6000 mm

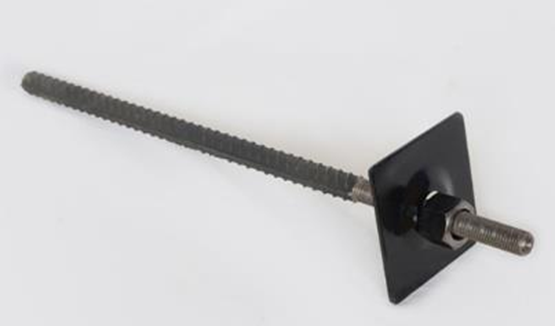

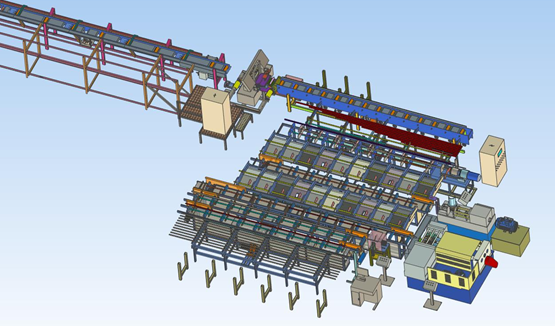

Fully automatic mortar anchors rod for tunnel support usage processing production line

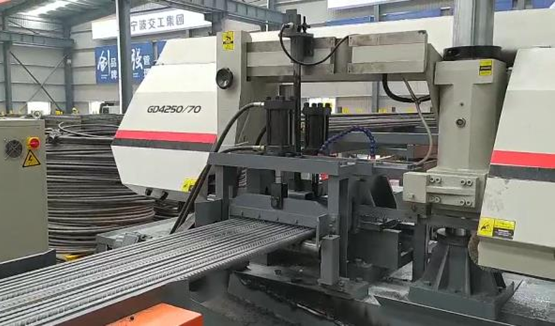

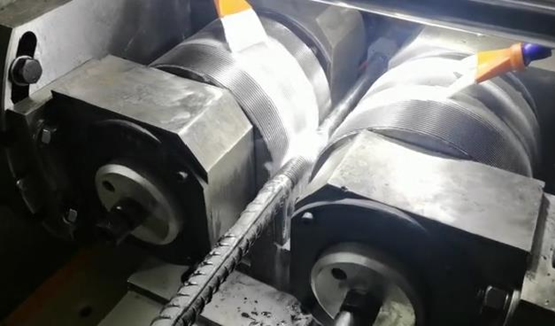

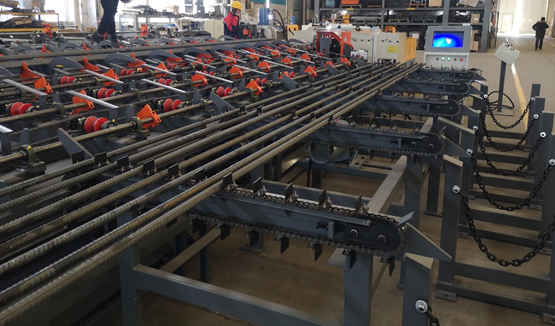

It has multiple functions such as automatic feeding of raw materials, automatic aggregate sorting, multiple fixed-length cutting, combined rib stripping, diameter reduction, hydraulic thread rolling, end grinding, laser marking, etc.
The production efficiency is about 240 sets/hour. The length of each set of anchor rods is calculated as 3.5 meters. The production in a single shift takes 8 hours, and the output in a single shift is 6720 meters.
Technical Specifications
|
No
|
Item
|
Data
|
|
1
|
Model
|
SMGX32
|
|
2
|
Raw materials
|
Hot rolled ribbed rebar HRB400
|
|
3
|
Anchor rod diameter
|
22,25,32 mm
|
|
4
|
Raw material length
|
Max.12m
|
|
5
|
Anchor rod length
|
2000-6000 mm
|
|
6
|
Longitudinal feed speed
|
50 m/min
|
|
7
|
Thread length range
|
80-120 mm
|

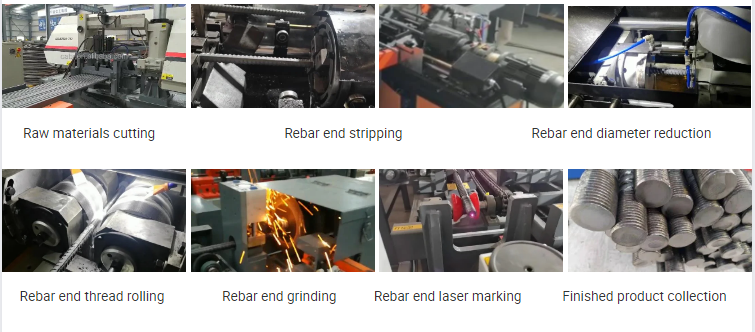

Manufacturing processes
