Fully automatic mortar anchors rod for tunnel support usage processing production line
Model:SMGX32 Anchor rod diameter:22,25,32 mm Anchor rod length:2000-6000 mm
Fully automatic hollow anchors rod for tunnel support usage processing production line
Product Description
Model ZMGX38
Anchor rod diameter 22,32,38 mm
Anchor rod length 2000-6000 mm

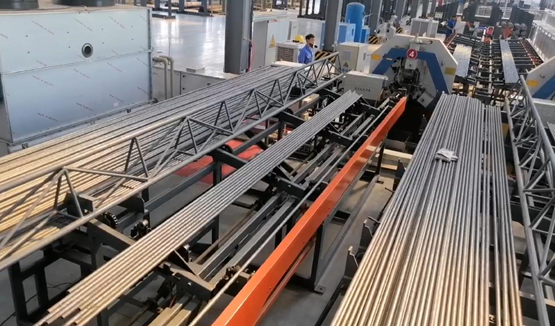

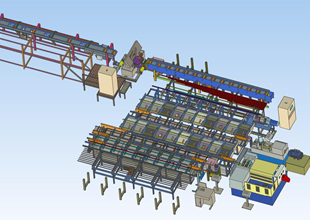

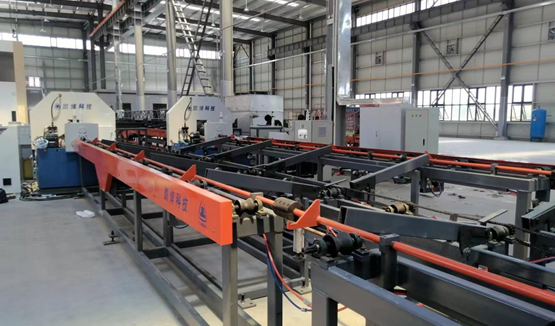

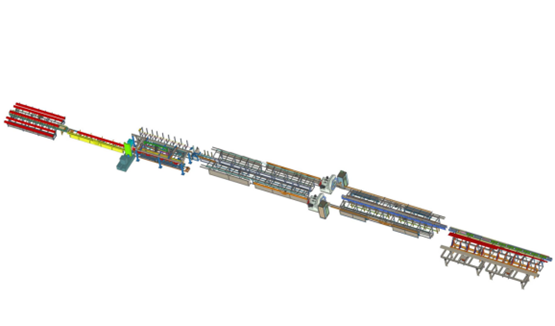

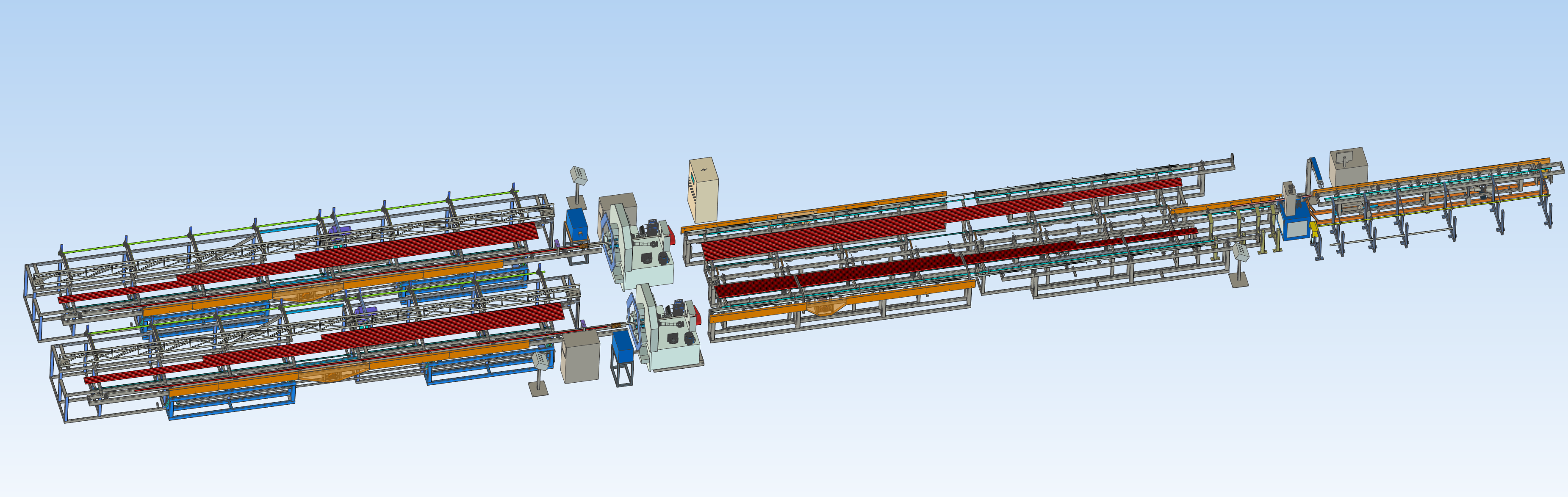

Fully automatic hollow anchors rod for tunnel support usage processing production line
This production line can realize the automatic feeding of hollow anchors rod with multiple specifications of raw materials, single material sorting, thread rolling, cutting, marking, sorting and quantitative discharging and conveying, finished product alignment, quantitative shaping, and automatic bundling. The whole process of conveying and transferring bundled finished products is automated, requires few people, and operates unmanned processing.
Technical Specifications
|
No
|
Item
|
Data
|
|
1
|
Model
|
ZMGX38
|
|
2
|
Raw materials
|
Seamless steel pipe (Q345 or Q420)
|
|
3
|
Anchor rod diameter
|
22,32,38 mm
|
|
4
|
Raw material length
|
Max.12m
|
|
5
|
Anchor rod length
|
2000-6000 mm
|
|
6
|
Longitudinal feed speed
|
50 m/min
|
|
7
|
Thread length range
|
Full thread
|
|
8
|
Thread type
|
corrugated thread
|
|
9
|
Thread pitch
|
12.7mm
|
|
10
|
Thread forming speed
|
3m/mim
|
