Multi-Functional Automatic Rebar Stirrup Bending Machine
1 Reliable Working Performance 2 Top Rate Productivity 3 Easy Operation & Low Op…
Economical Automatic Rebar Stirrup Bending Machine
Product Description
Model GGJ13E
Working Capacity 5-13mm
Machine Function Straightening, Bending, Cutting
Max. Working Speed 110m/min

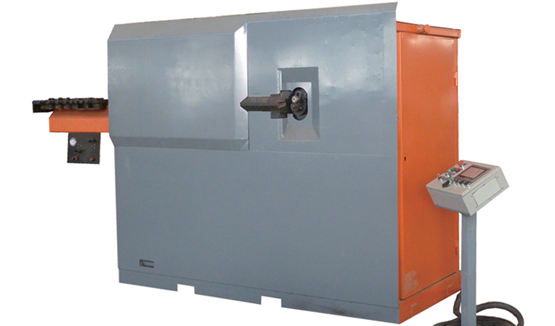

Economical Automatic Rebar Stirrup Bending Machine
The Automatic rebar stirrup bending machine controlled by servo system, can automatically accomplish rebar feeding, straightening, bending and cutting working. Could continuously bend various stirrup figure, mainly used for produce rebar hook and stirrup product in construction, bridge, high-speed road and rebar fabricate plant.
Technical Advantages
1. Automatic wire feeding system (CNC)
2. Split, multi-blade design (patented) to reduce consumption costs.
3. Large storage capacity can save 500 processing geometric graphics, high degree automation.
4. High power feeding motor to ensure bending bar accuracy.
5. The intelligent fault identification alarm system maintenance more convenient.
6. Heavy-duty design line planes, equipped with a brake and buffer device can prevent chaotic lines caused by downtime.
7. High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with operating costs.
8. Touch-screen console, easy to operate, and more fast.
9. High efficiency and accurate processing precision.
Technical Specifications
|
Model |
GGJ13 – Economical |
|
|
Capability |
Double wire |
5-8mm |
|
Single wire |
5-13mm |
|
|
Maximum Bending Angle |
±180° |
|
|
Mandrel Diameter |
20/25/32mm (40/50/60 optional) |
|
|
Maximum Pulling Speed |
110 m/min |
|
|
Maximum Bending speed |
1250 °/sec |
|
|
Max. Side Length of Stirrup |
1400mm |
|
|
Length Tolerance |
±1mm |
|
|
Bending Angle Tolerance |
±1° |
|
|
Production Capacity: Stirrups with 5 bends, Rebar length 1200mm |
With 1 wire: 900 /h With 2 wire:1800 /h |
|
|
Rated Total Power |
27kW |
|
|
Voltage Specification |
3 Phase, 380V, 50Hz or customize |
|
|
Noise Intensity |
Leq = <80 dB(A) |
|
|
Operating Ambient Temperature |
-5°C～+40°C |
|
|
Gross Weight |
2.4 Ton |
|
|

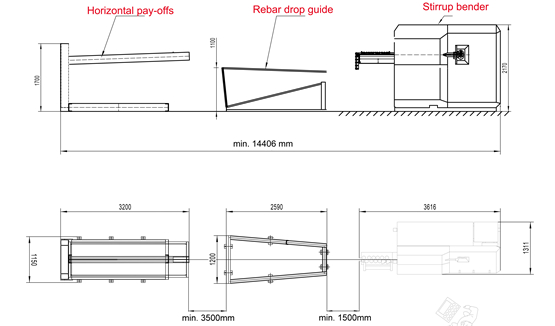

Overall dimensions |
3616*1440*2170mm |
|
|
Applicable Material Status |
HPB235, HPB300, HRB335, HRB400, HRB500 |
|
Exported Countries
We have exported rebar bender to Philippines,Cambodia,Thailand,India,Kuwait,Brazil,Bolivia,New Zealand,Russia,etc.
