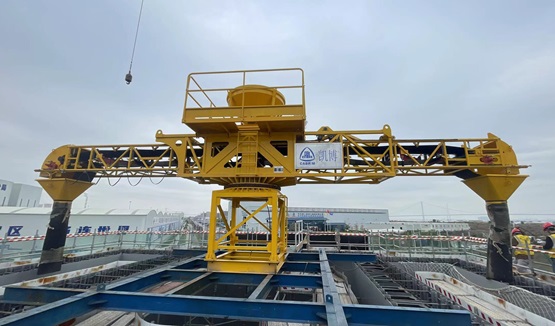

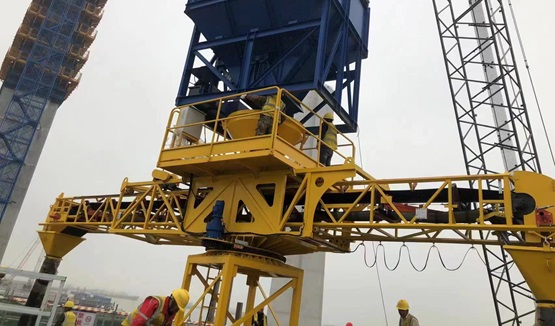

Belt type concrete pouring machine
Product Description
Model HJZ20-120,HJZ25-120,HJZ30-120
Product Overview
The equipment can rotate within a 360° range, and has functions such as column top feeding, left and right movement and luffing,and discharging and pouring at both ends.
It can cover concrete pouring in a circular area with the column as the center and the maximum arm length as the radius.

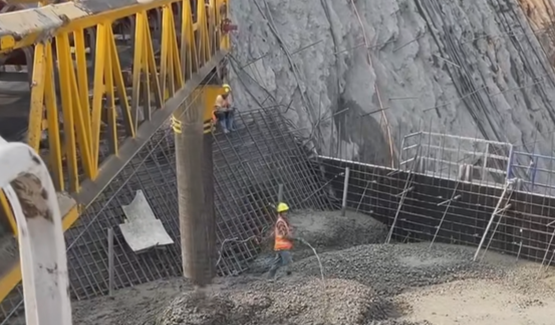

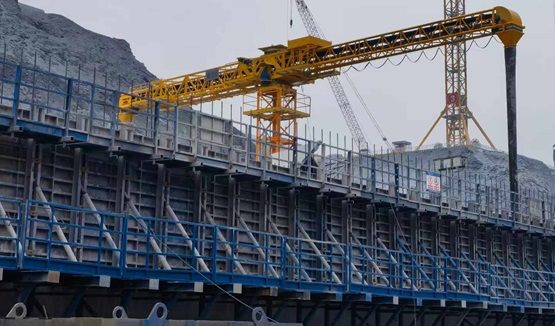

It is suitable for pouring large-volume graded concrete in water conservancy, hydropower and various large-scale foundations.
Main Technical Specification
|
Model
|
Rated conveying capacity (m³/h)
|
Radius (m)
|
Belt width (mm)
|
Belt speed（m/s）
|
Independent installation height (m)
|
Total power (kW)
|
|
HJZ20-120
|
120
|
3.5～20
|
650
|
2.5
|
20
|
18
|
|
HJZ25-120
|
120
|
3.5～25
|
650
|
2.5
|
20
|
19.4
|
|
HJZ30-120
|
120
|
3.5～30
|
650
|
2.5
|
20
|
20.2
|
